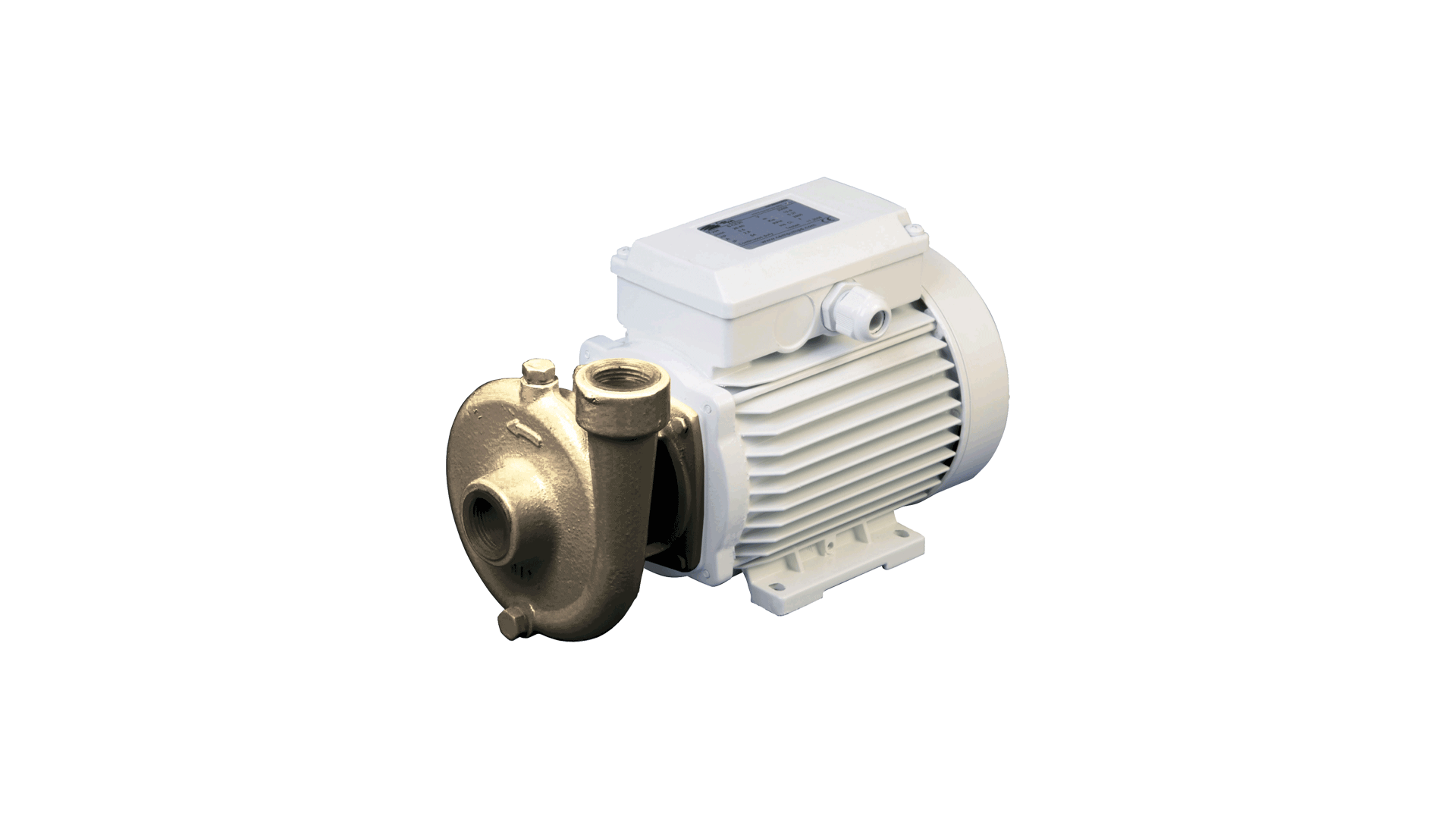

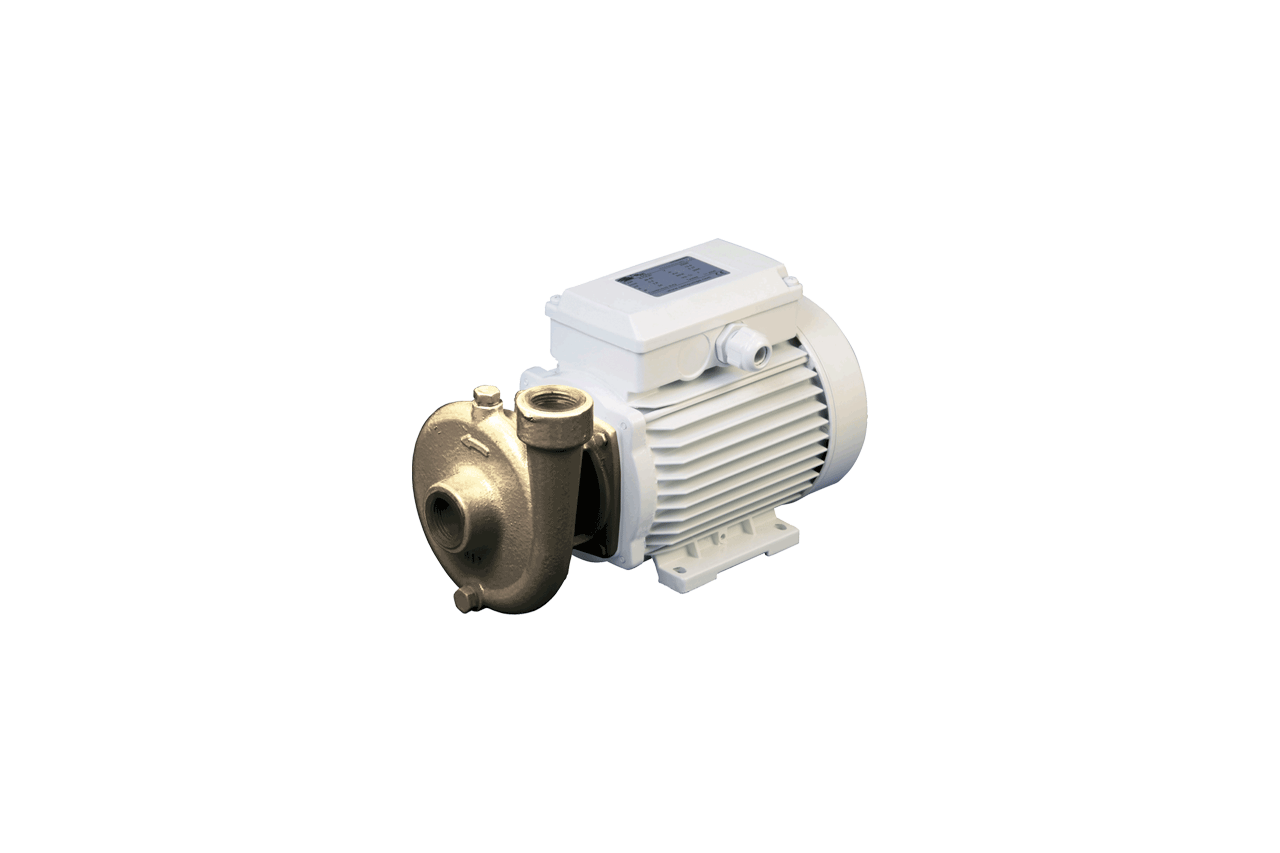

POMPE CENTRIFUGHE A 230 V – 50 HZ PER APPLICAZIONE ACQUA MARE / ACQUA + GLICOLE – CIRCUITO CHILLER
No data found.
POMPE CENTRIFUGHE A 230 V – 50 HZ - CIRCUITO CHILLER A CONFRONTO - specifiche tecniche
| UB-CE 16-M |
UB-CE 20-M |
UB-CE 22-M |
UB-CE-25-12-M |
|
|---|---|---|---|---|
|
SKU |
67960 L |
67964 V |
67967 B |
20848 D |
|
Flow rate: |
40 l/min |
80 l/min |
120 l/min |
200 l/min |
|
Input power: |
390 W |
600 W |
1000 W |
1300 W |
|
Max Head: |
7,0 m (23.0’) |
14,0 m (46.0’) |
21 m (68.9’) |
24 m (78.7’) |
|
in/out connection |
F1/2” |
F1” |
F1” |
F1” |
|
Dimensions: |
A=266 mm, B=122 mm, C= 138 mm |
A=303 mm, B=154 mm, C= 161 mm |
A=303 mm, B=174 mm, C= 181 mm |
A=313 mm, B=173 mm, C= 230 mm |
|
Weight: |
5,6 kg (12.3 lbs) |
9,1 kg (20 lbs) |
10,3 kg (22.7 lbs) |
14,5 kg (31.9 lbs) |
