HY-400L e HY-600L 5 BLADE WIND GENERATORS – HYE®
HY-400L e HY-600L 5 BLADE WIND GENERATORS – HYE®
WIND GENERATORS 5 BLADE Features: Equipped with electromagnetic control of the blade speed and with aerodynamic clutch of the blades. […]

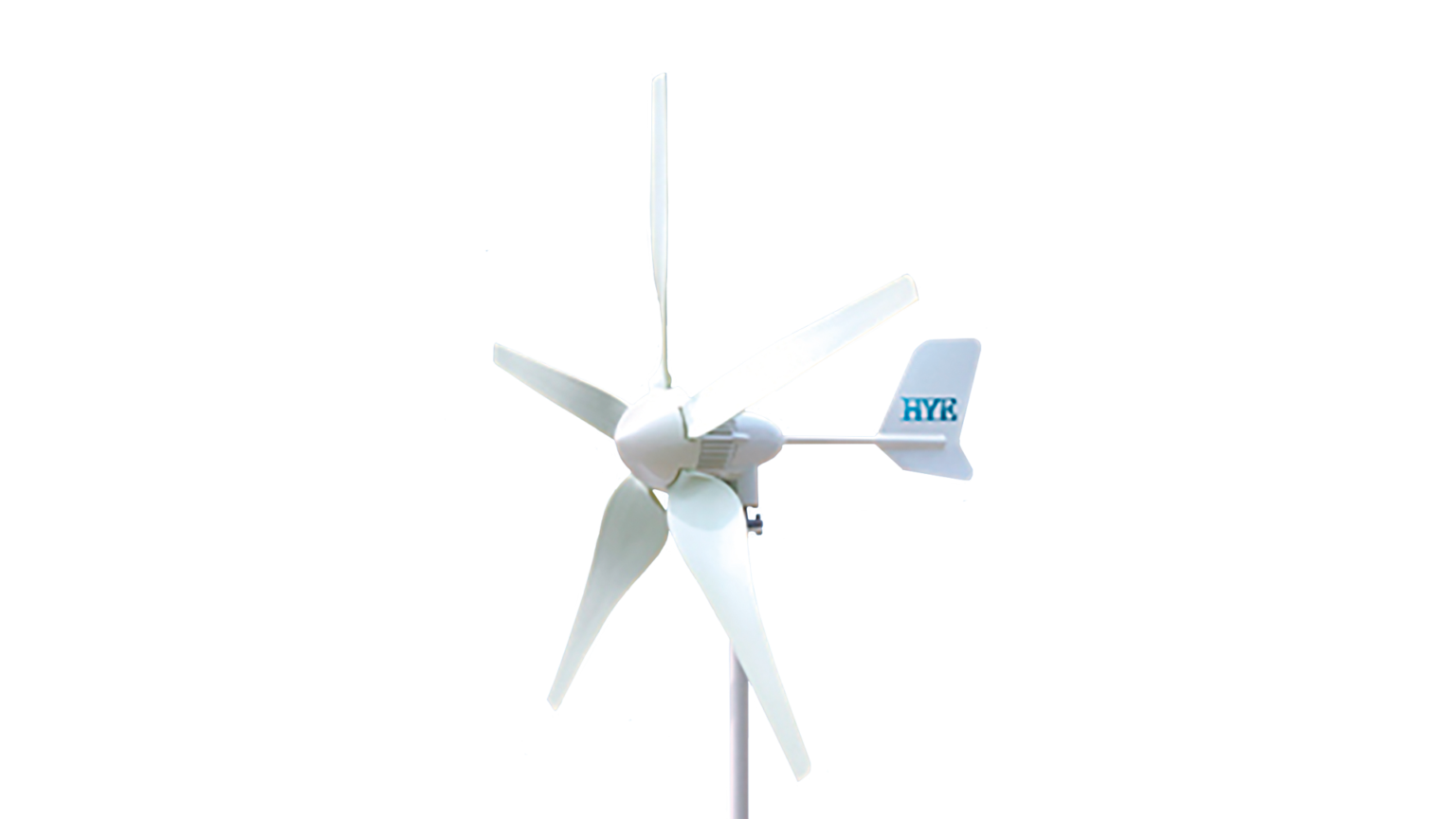

WIND GENERATORS 5 BLADE
Features:
- Equipped with electromagnetic control of the blade speed and with aerodynamic clutch of the blades. The blades are made of glass fiber reinforced
- 3 phase brushless wind generator with permanent magnets. The wind generator body is made of aluminium alloy and rotor is stainless steel
- Pole connection through a flange or a clamp and bolt
- PWM electric signal or low voltage charge function
- Available hybrid solar-wind controller
Also available: HY-400L e HY-600L versions
Applications: Stand-alone systems, solar-wind hybrid systems, etc
Warranty: 3 years
Certifications: ISO9001:2008; CE; RoHS; ETL
No data found.
| Model |
HY-400L |
HY-600L |
|---|---|---|
|
Part No. |
68511K |
68643D |
|
Nominal power |
400 W |
600 W |
|
Peak power |
500 W |
750 W |
|
Voltage |
12/24 V DC |
24/48 V DC |
|
Start-up wind speed |
2 m/s (4.5 mph) |
2 m/s (4.5 mph) |
|
Max wind speed |
50 m/s (110 mph) |
50 m/s (110 mph) |
|
Nominal rotor speed |
750 rpm |
750 rpm |
|
Nominal charge current |
33.3/16.7 A |
25/12.5 A |
|
Energy delivered (average |
82 kWh/month |
91 kWh/month |
|
Rotor Diameter |
1,55 m |
1,75 m |
|
Area swept |
1,89 m² |
2,4 m² |
|
Dry weight kg (lbs) |
22 (48.5) |
25 (55.12) |
