VL ENGINE OIL PRESSURE GAUGE 10 BAR 52 mm
The Viewline pressure gauge detects fluctuations in engine oil pressure.
• 8 pole Tyco / Hirschmann MQS plug
• + / – 3.6° angle degree accuracy over the entire display range
• Current consumption < 150 mA, with integrated warning light (LED)
• Input signal: standard Ω values
• Optional makepoint switch can be connected
• Reverse polarity protection
• Anti-fog double lens
• Front side protection rating IP67
The outer scale is available also in PSI
PACKAGE CONTENTS
Oil pressure gauge, adapter cable 8 pole, round bezel, pushbuttons for mode and configuration, spinlock nut, rubber seal, QR code, safety instructions
| Label | Value |
|---|---|
| Installation diameter | 52 mm |
| Installation depth | 50 mm |
| Display angle | 90° |
| Front side protection rating | IP67 |
Engine oil pressure 10 Bar ViewLine
| VDO SKU |
SKU |
COLOR |
RANGE |
VOLTAGE |
INPUT |
|---|---|---|---|---|---|
|
A2C59514111 |
60253LA |

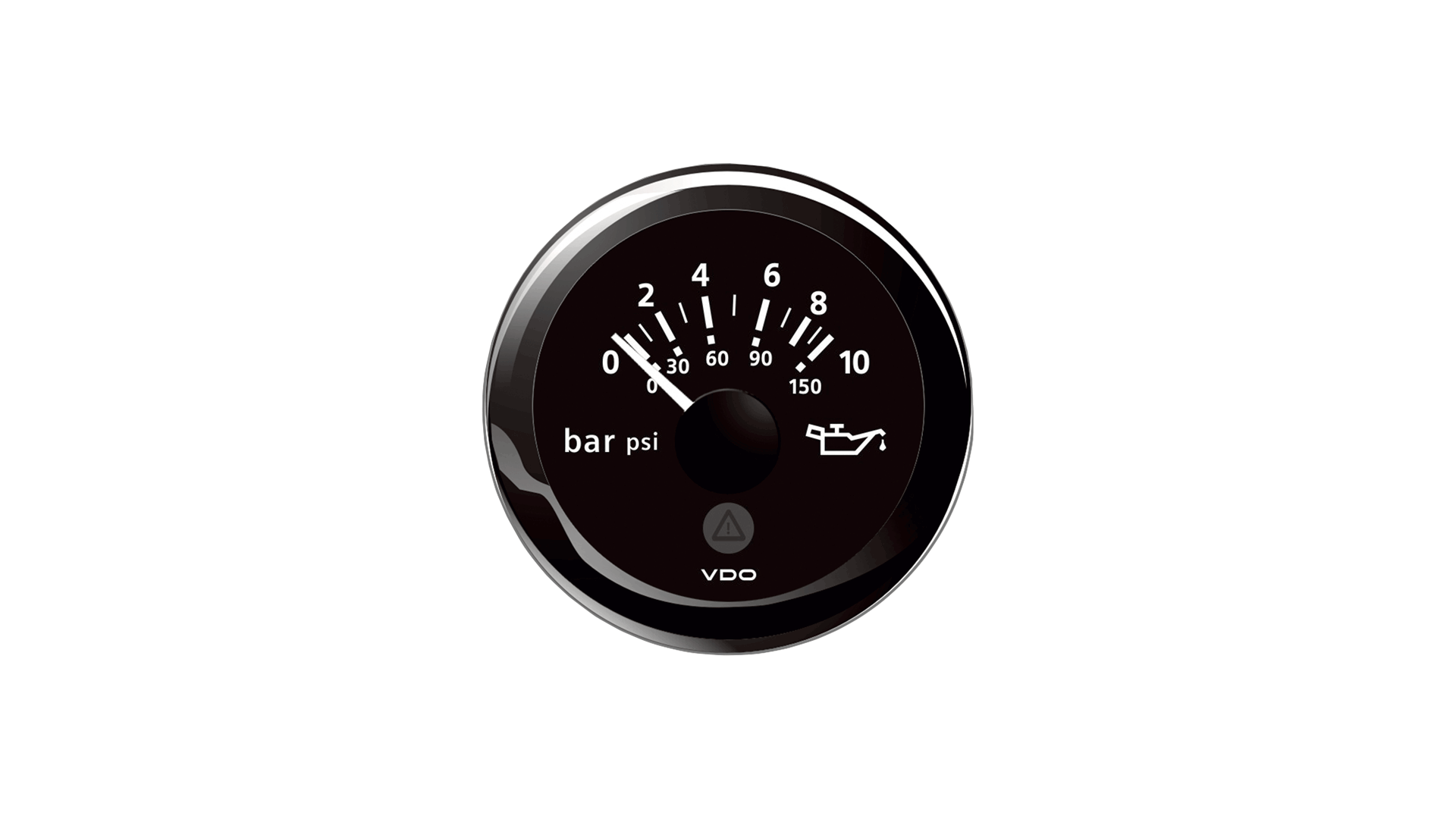

Black |
0 - 10 bar |
8 - 32 V |
10 - 184 Ω |
|
A2C59514199 |
60254MA |

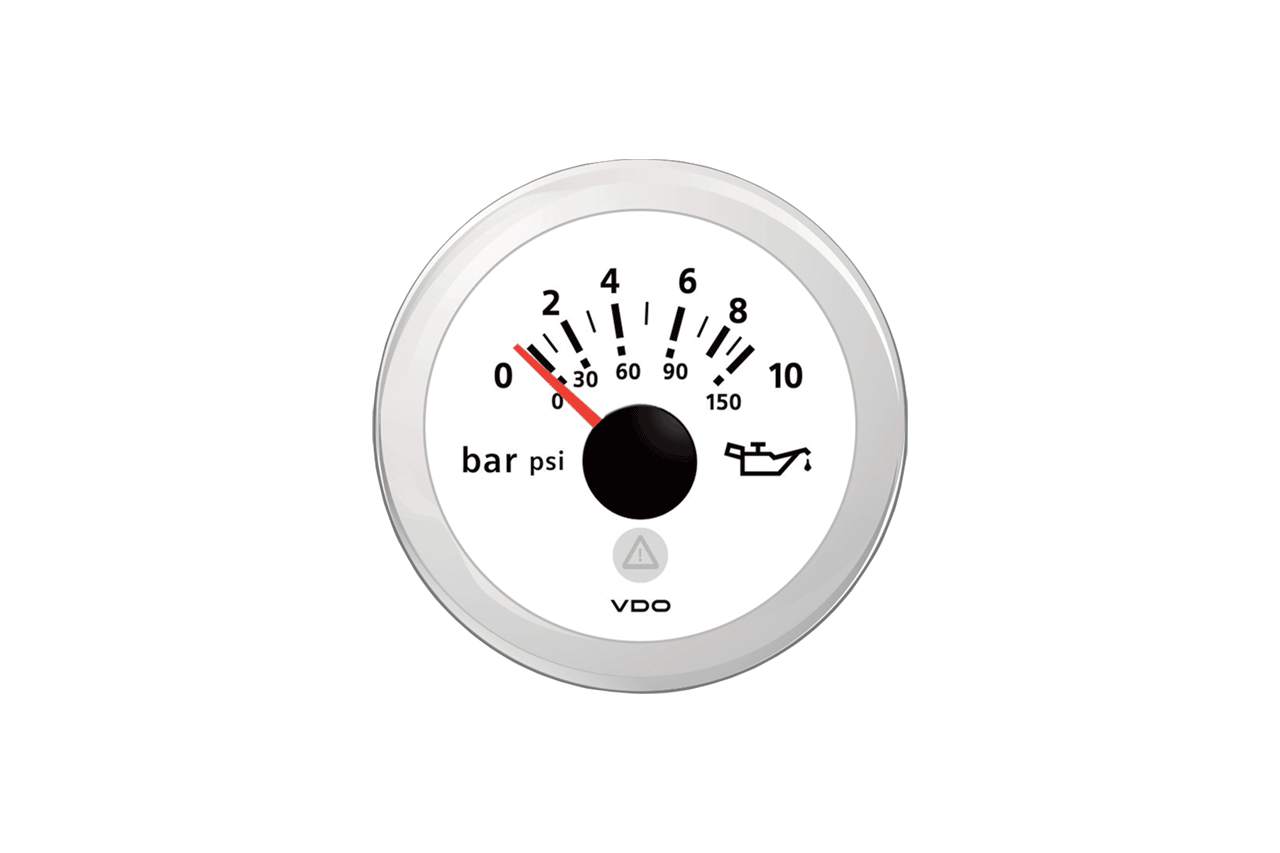

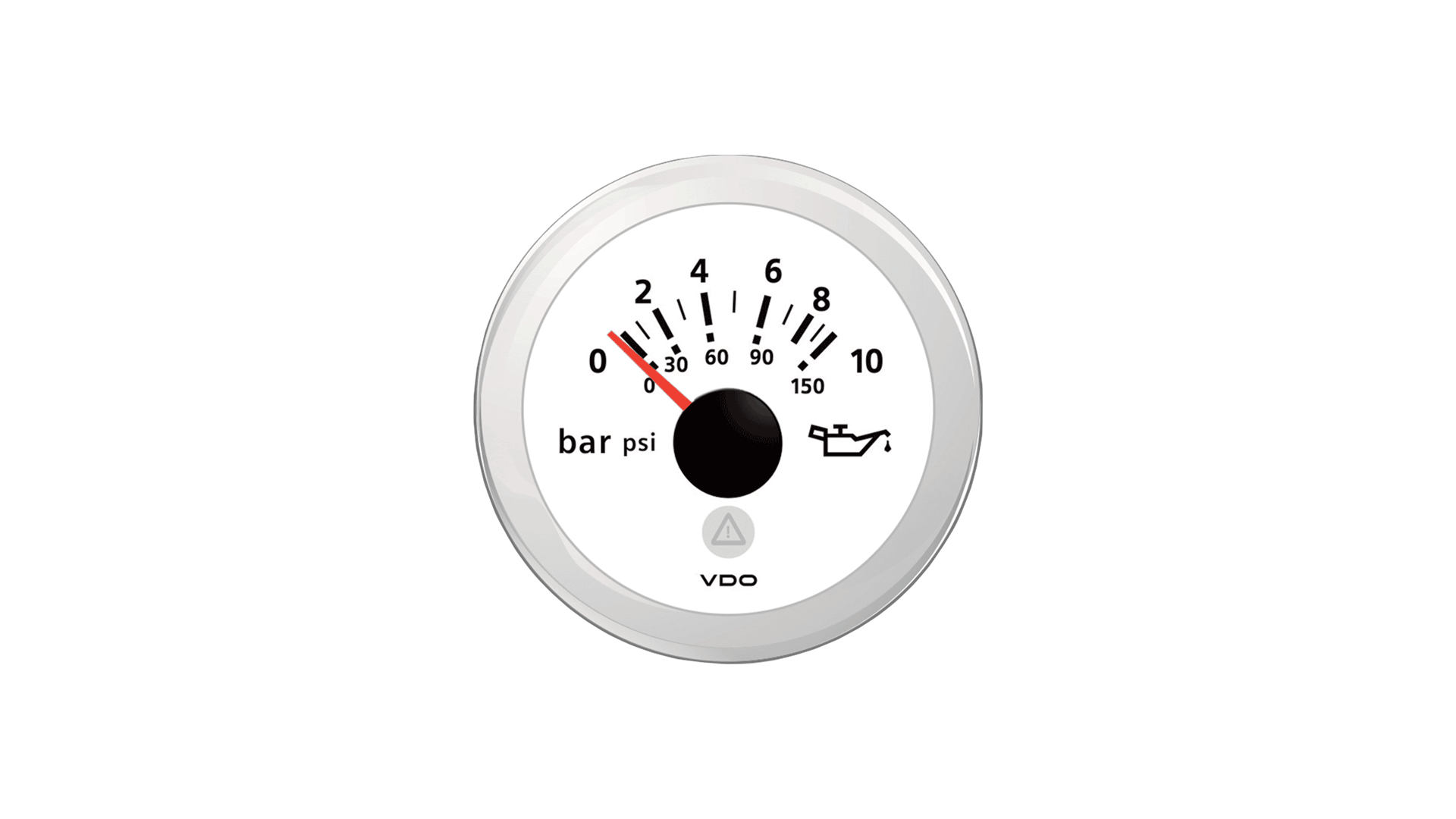

White |
0 - 10 bar |
8 - 32 V |
10 - 184 Ω |
