VL FUEL TANK LEVEL 0-90 Ω – diameter 52 mm
The Viewline 0-90 Ω fuel gauge provides information about the fuel level in the tank and can be used with all types of tank sensors.
• 8 pole Tyco / Hirschmann MQS plug
• + / – 3.6° angle degree accuracy over the entire display range
• Current consumption < 150 mA, with integrated warning light (LED)
• Input signal: standard Ω values for lever type sensors
• 90° display angle
• Optional makepoint switch can be connected
• Reverse polarity protection
• Anti-fog double lens
• Front side protection rating IP67
PACKAGE CONTENTS
Fuel level gauge, adapter cable 8 pole, round bezel, pushbuttons for mode and configuration, spinlock nut, rubber seal, QR code, safety instructions
| Label | Value |
|---|---|
| Installation diameter | 52 mm |
| Installation depth | 50 mm |
| Display angle | 90° |
| Front side protection rating | IP67 |
FUEL TANK LEVEL 0-90 Ω - VIEWLINE
| MODELLO VDO |
CODICE |
COLORE |
RANGE |
TENSIONE |
ENTRATA |
|---|---|---|---|---|---|
|

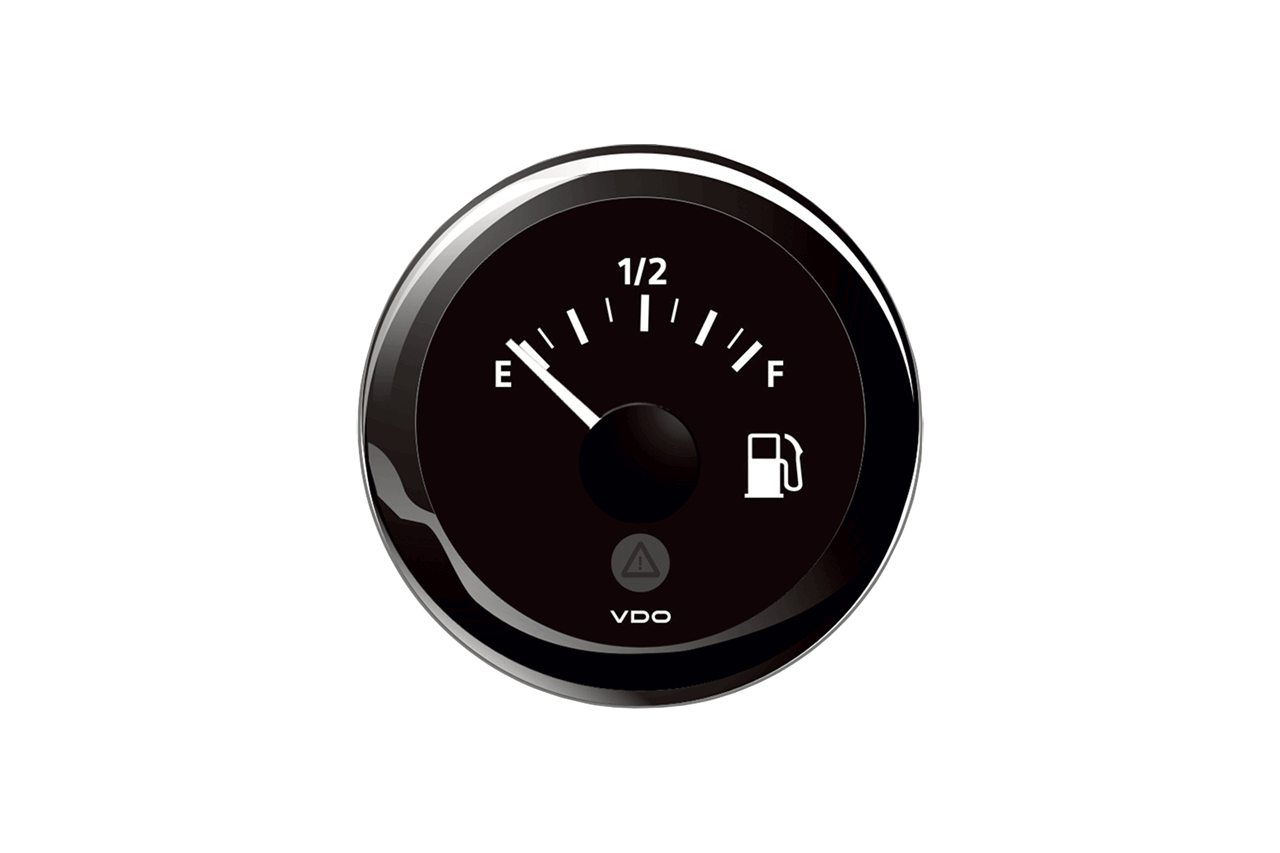

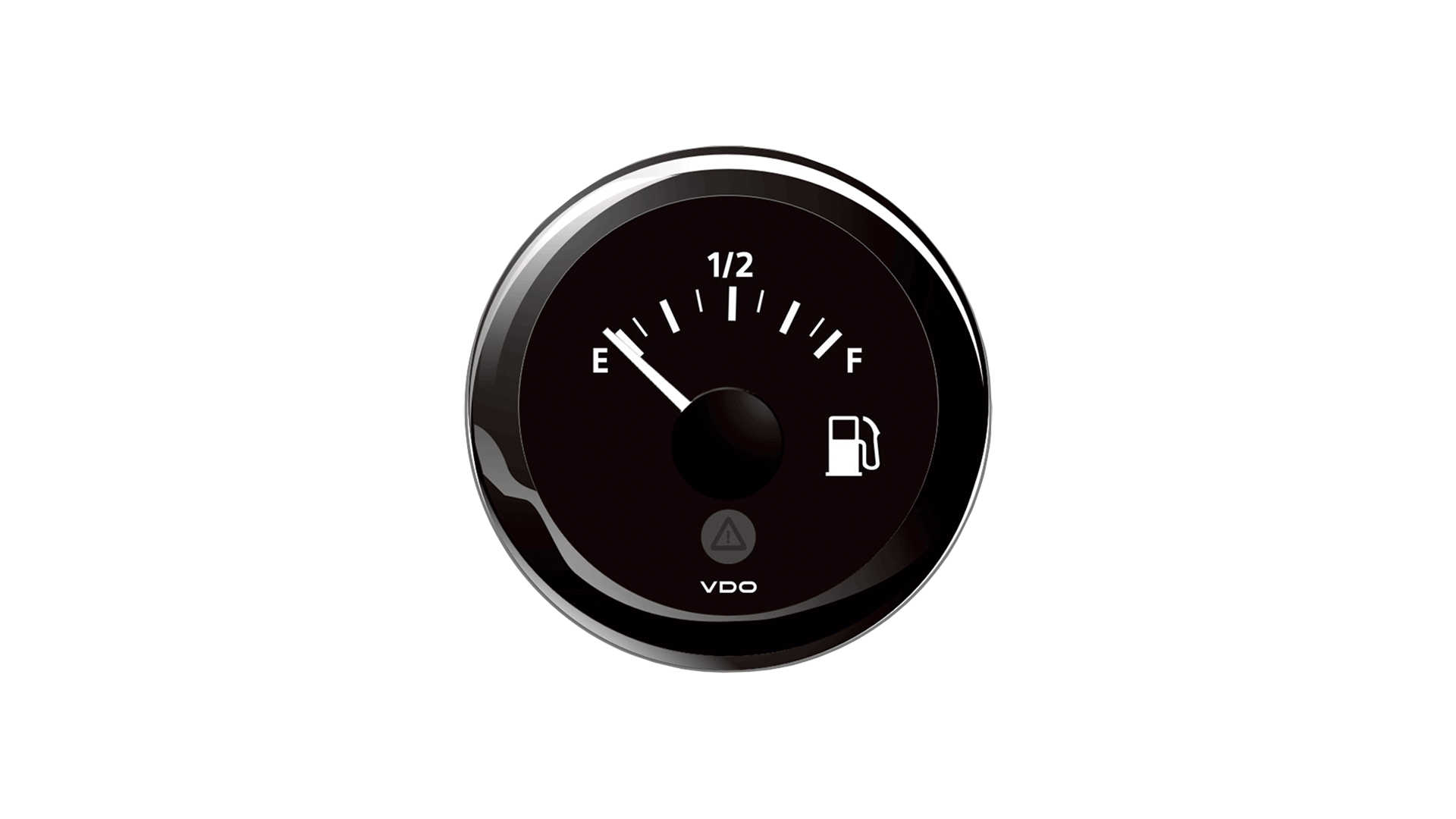

A2C59514085 |
60271NA |
Nero |
Vuoto - Pieno |
8 - 32 V |
0 - 90 Ω |
|

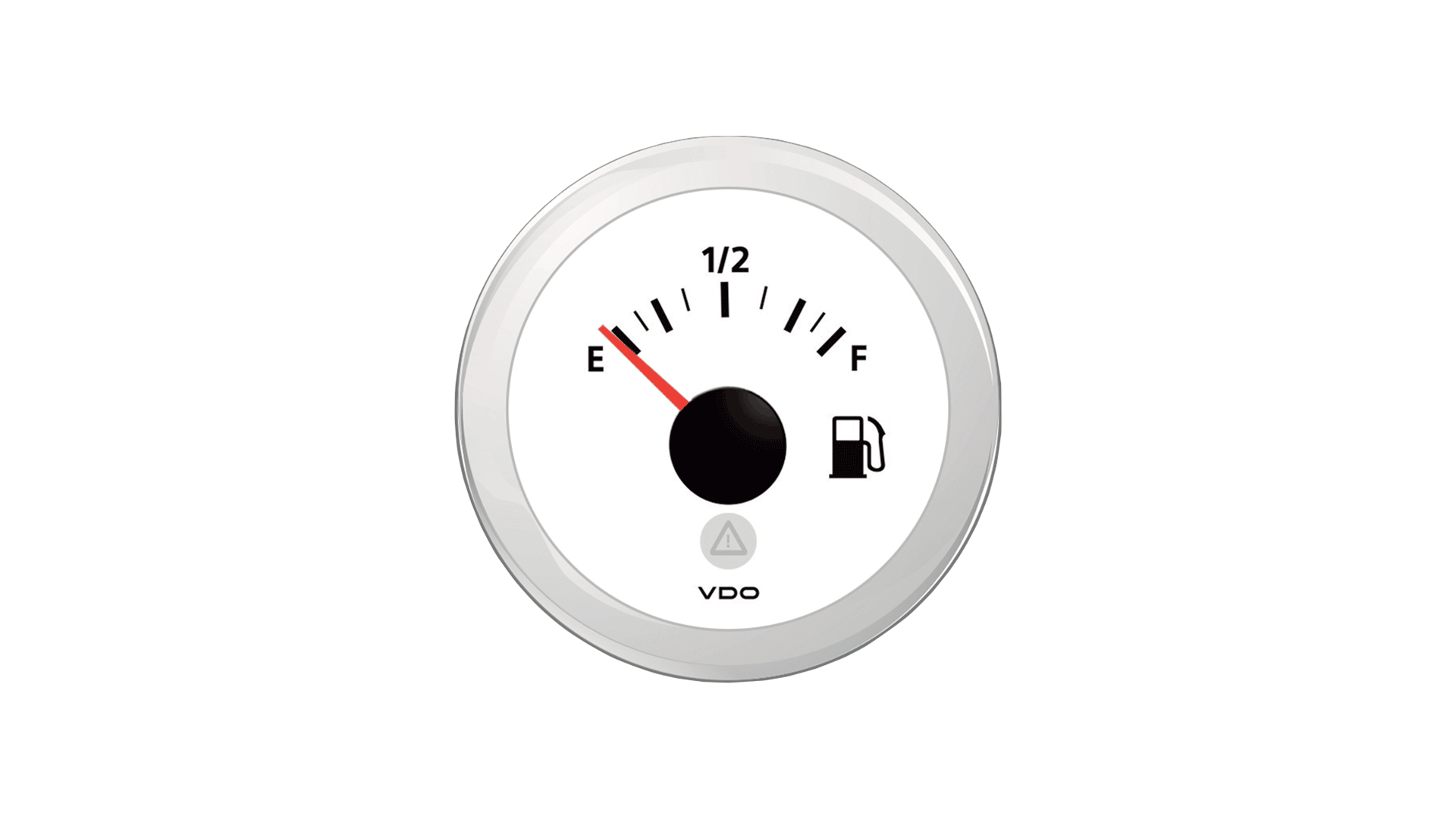

A2C59514186 |
60272OA |
Bianco |
Vuoto - Pieno |
8 - 32 V |
0 - 90 Ω |
