VL FUEL TANK LEVEL 3-180 Ω – diameter 52 mm
The Viewline 3-180 Ω boat fuel gauge provides information about the fuel level in the tank and can be used with all types of tank sensors.
• 8 pole Tyco / Hirschmann MQS plug
• + / – 3.6° angle degree accuracy over the entire display range
• Current consumption < 150 mA, with integrated warning light (LED)
• Input signal: standard Ω values for lever type sensors
• 90° display angle
• Optional makepoint switch can be connected
• Reverse polarity protection
• Anti-fog double lens
• Front side protection rating IP67
PACKAGE CONTENTS
Fuel level gauge, adapter cable 8 pole, round bezel, pushbuttons for mode and configuration, spinlock nut, rubber seal, QR code, safety instructions
| Label | Value |
|---|---|
| Installation diameter | 52 mm |
| installation depth | 50 mm |
| Display angle | 90° |
| Front side protection rating | IP67 |
FUEL TANK LEVEL 3-180 Ω – Ø 52
| VDO SKU |
SKU |
COLOR |
RANGE |
VOLTAGE |
INPUT |
|---|---|---|---|---|---|
|
A2C59514082 |
60273PA |

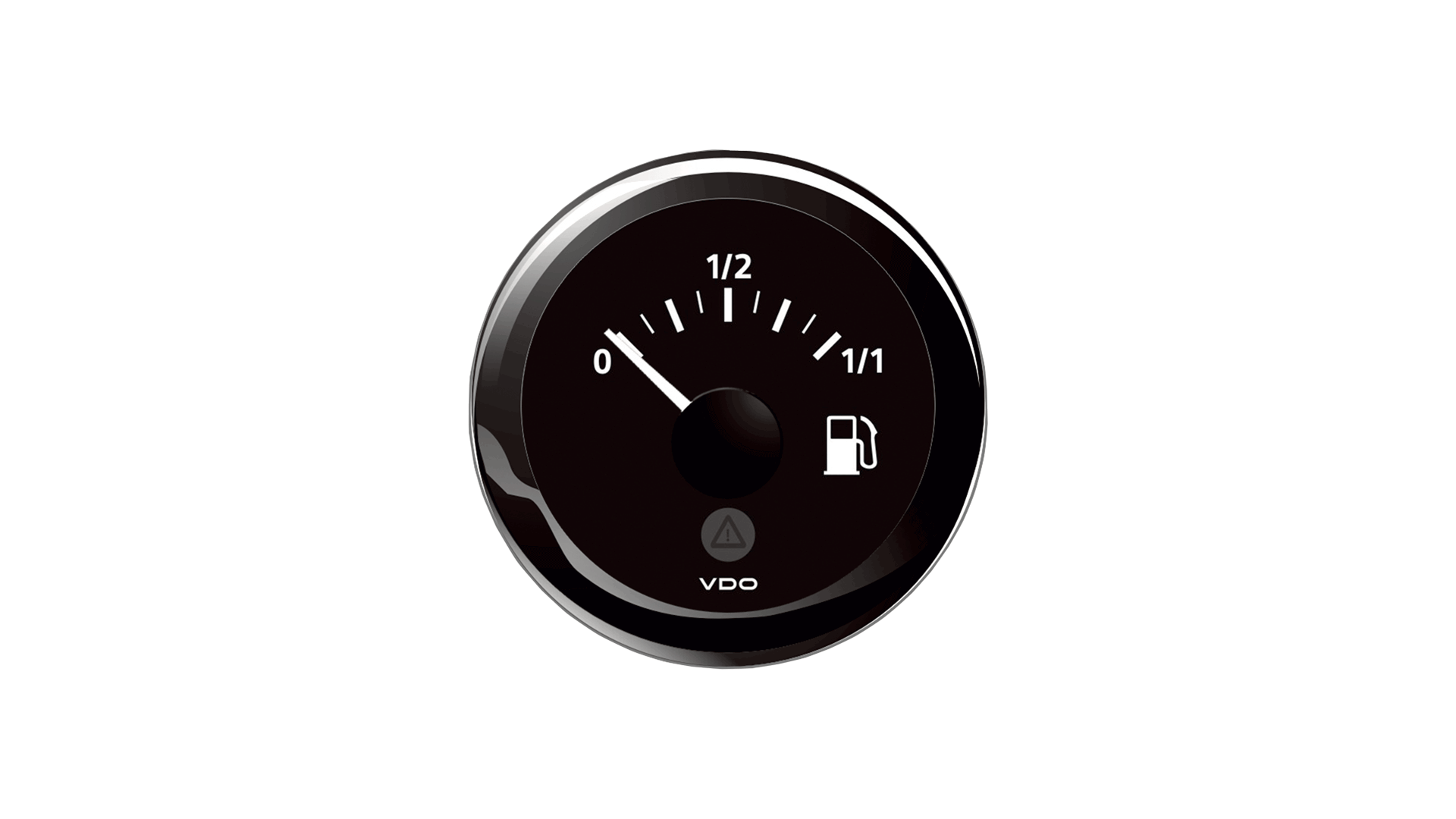

Black |
0 - 1/1 |
8 - 32 V |
3 - 180 Ω |
|
A2C59514184 |
60274QA |

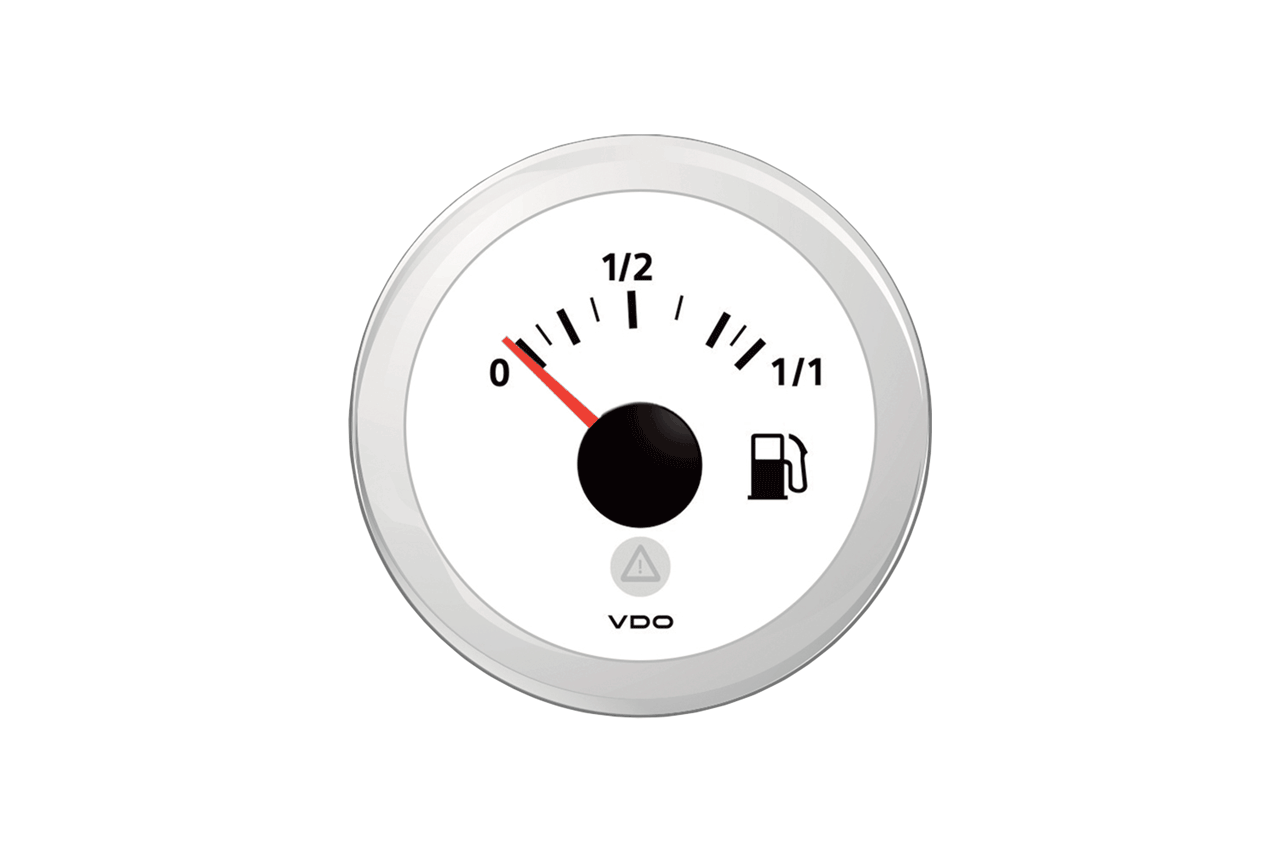

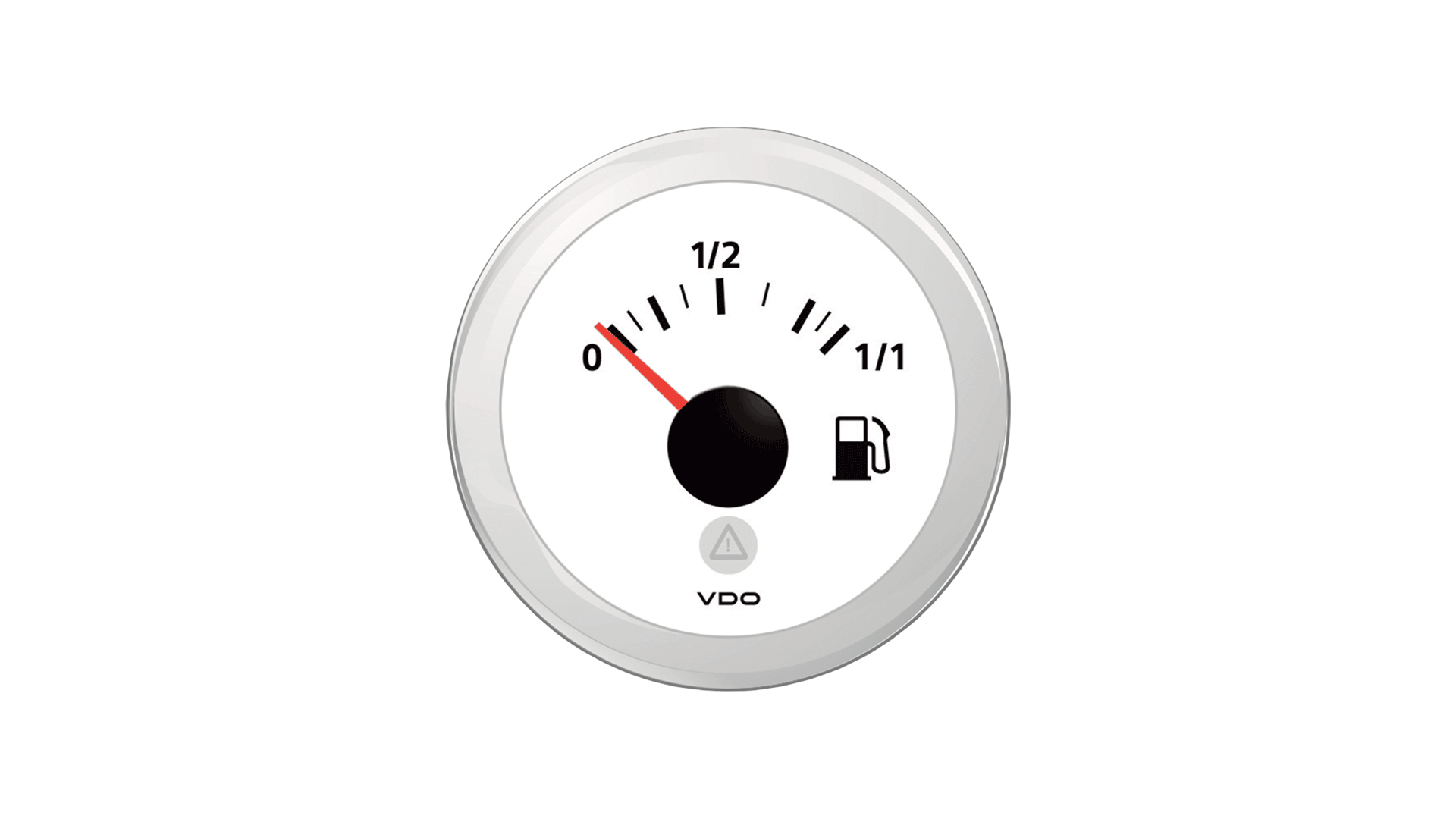

White |
0 - 1/1 |
8 - 32 V |
3 - 180 Ω |
