VL RUDDER POSITION GAUGE 52 mm – 85 mm
The Viewline rudder angle instrument for wheel-controlled yachts displays the current rudder position at all times.
An important cockpit instrument for accident-free maneuvers in narrow waterways.
• 8 pole Tyco / Hirschmann bush housing
• Current consumption < 150 mA
• Anti-fog double lens
• Front side protection rating IP67
• 52 or 85 mm installation diameter
• 50 mm installation depth
PACKAGE CONTENTS
Rudder angle instument, adapter cable 8 pole, round bezel, pushbuttons for mode and configuration, spinlock nut, rubber seal, QR code, safety instructions
| Label | Value |
|---|---|
| Installation diameter | 52mm; 85 mm; |
| Installation depth | 50 mm |
| 52 mm gauge range | 40° babordo a 40° tribordo |
| 85 mm gauge range | 45° babordo a 45° tribordo |
| Front side protection rating | IP67 |
RUDDER POSITION - Ø52, Ø85
| VDO SKU |
DIAMETER |
SKU |
COLOR |
RANGE |
VOLTAGE |
INPUT |
|---|---|---|---|---|---|---|
|

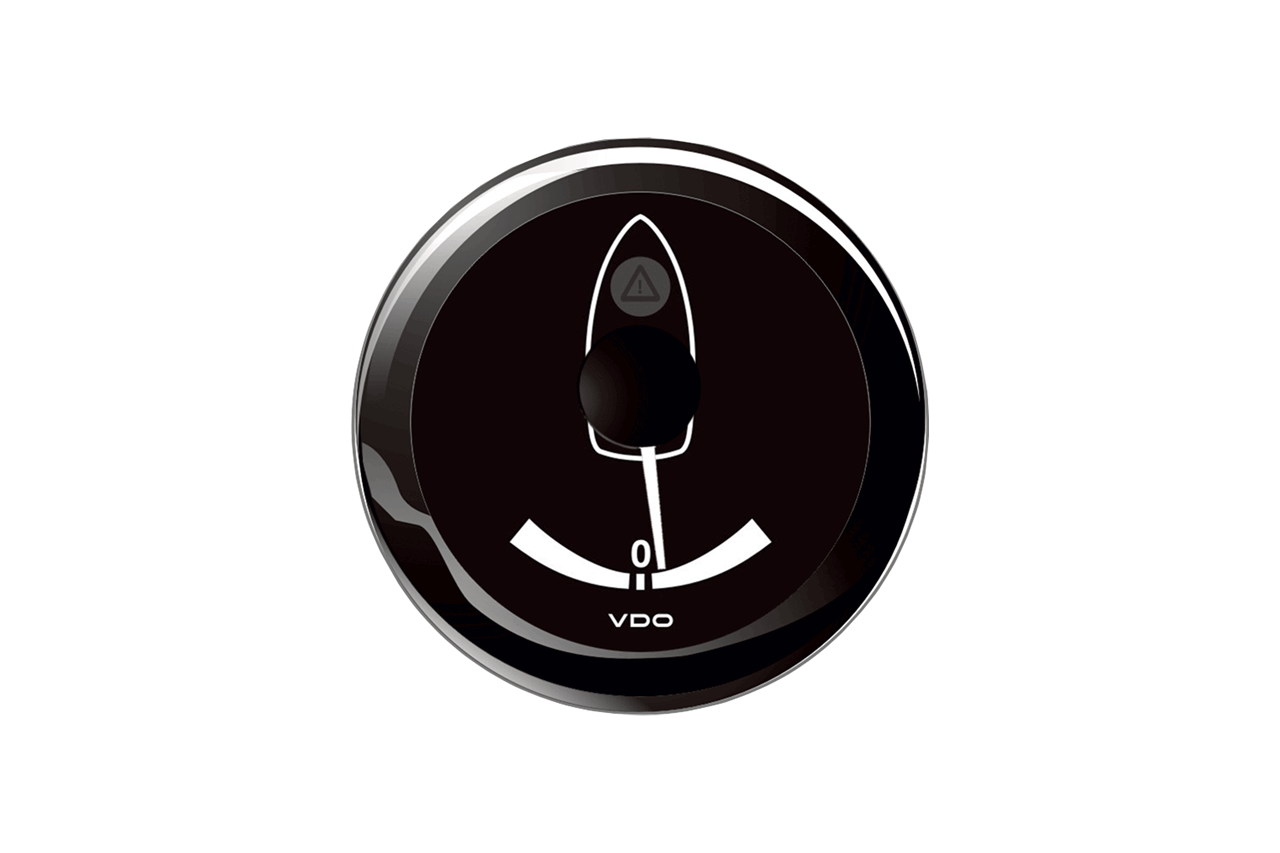

A2C59514154 |
52 mm |
60263NA |
Nero |
-40° / +40° |
8 - 32 V |
3 - 180 Ω |
|
A2C59514230 |
52 mm |
60264OA |
Bianco |
-40° / +40° |
8 - 32 V |
3 - 180 Ω |
|
A2C59512410 |
85 mm |
60265PA |
Nero |
-45° / +45° |
8 - 32 V |
3 - 180 Ω |
|

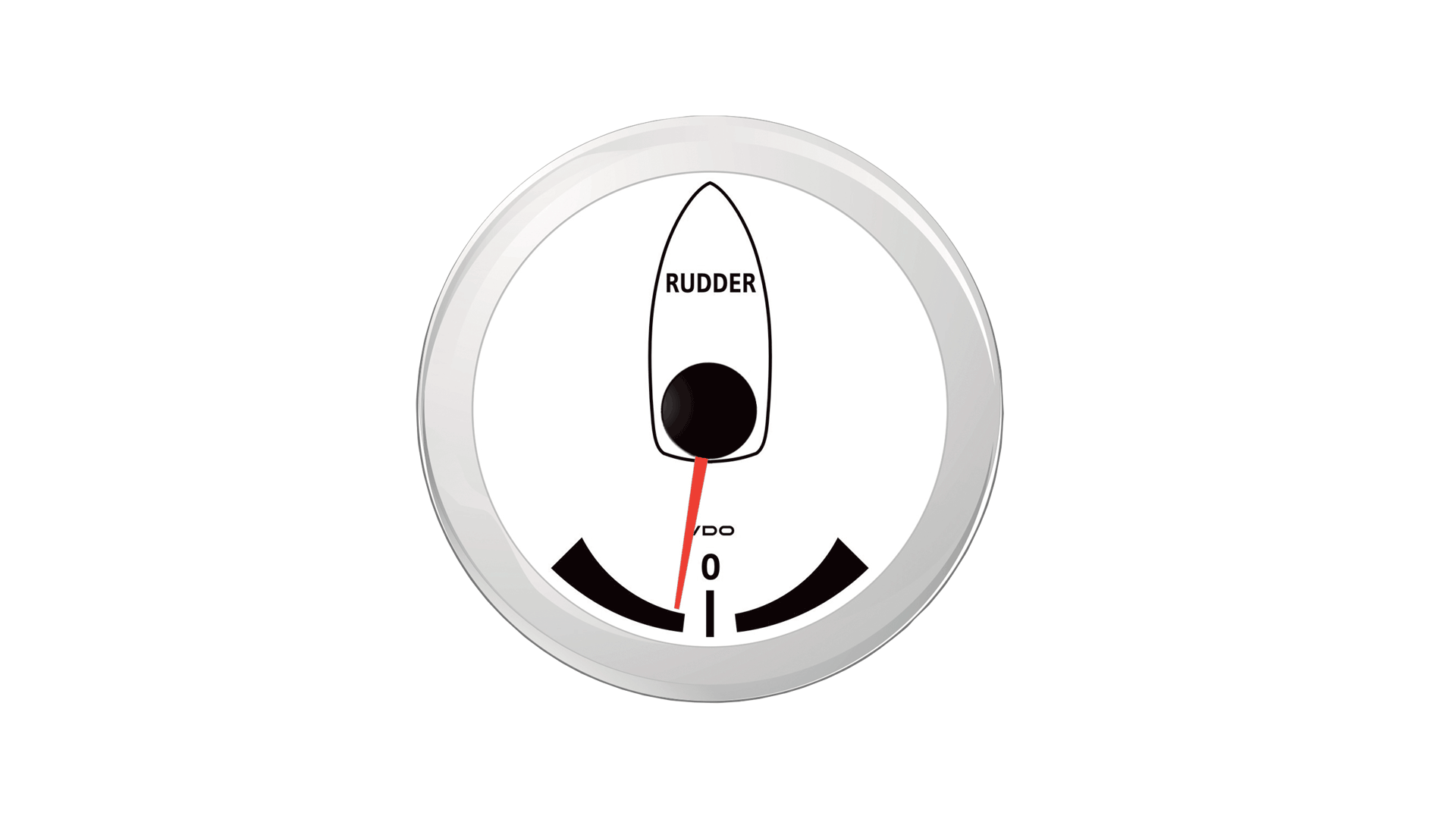

A2C59512411 |
85 mm |
60266QA |
Bianco |
-45° / +45° |
8 - 32 V |
3 - 180 Ω |
